T-LINE LED Track Linear Light
Replace fluorescent tubes with 180lm/W efficiency. Compatible with Global, Ivela, Eutrac, Unipro and all major track rails. Mount alongside spotlights on the same rail for supermarket, warehouse & logistics lighting.
Complete T-LINE Series
From ultra-slim standard to low UGR grille and batwing tilting

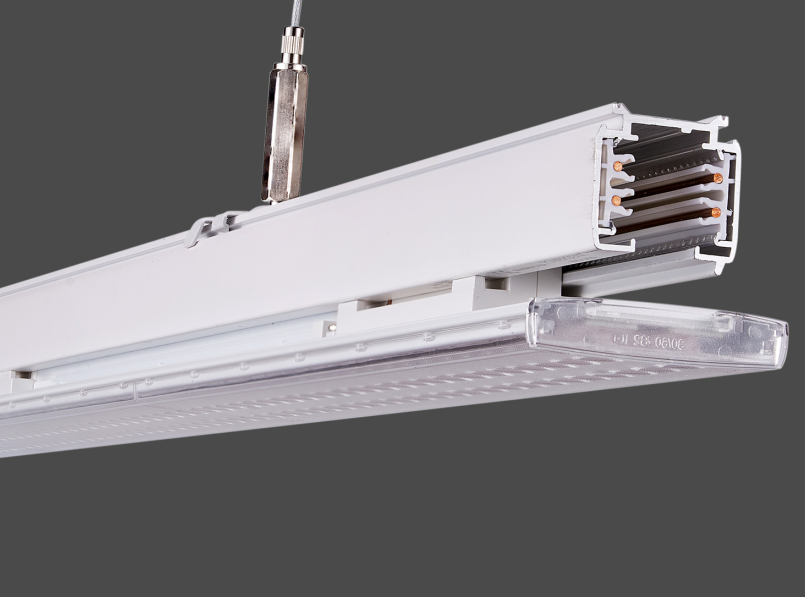

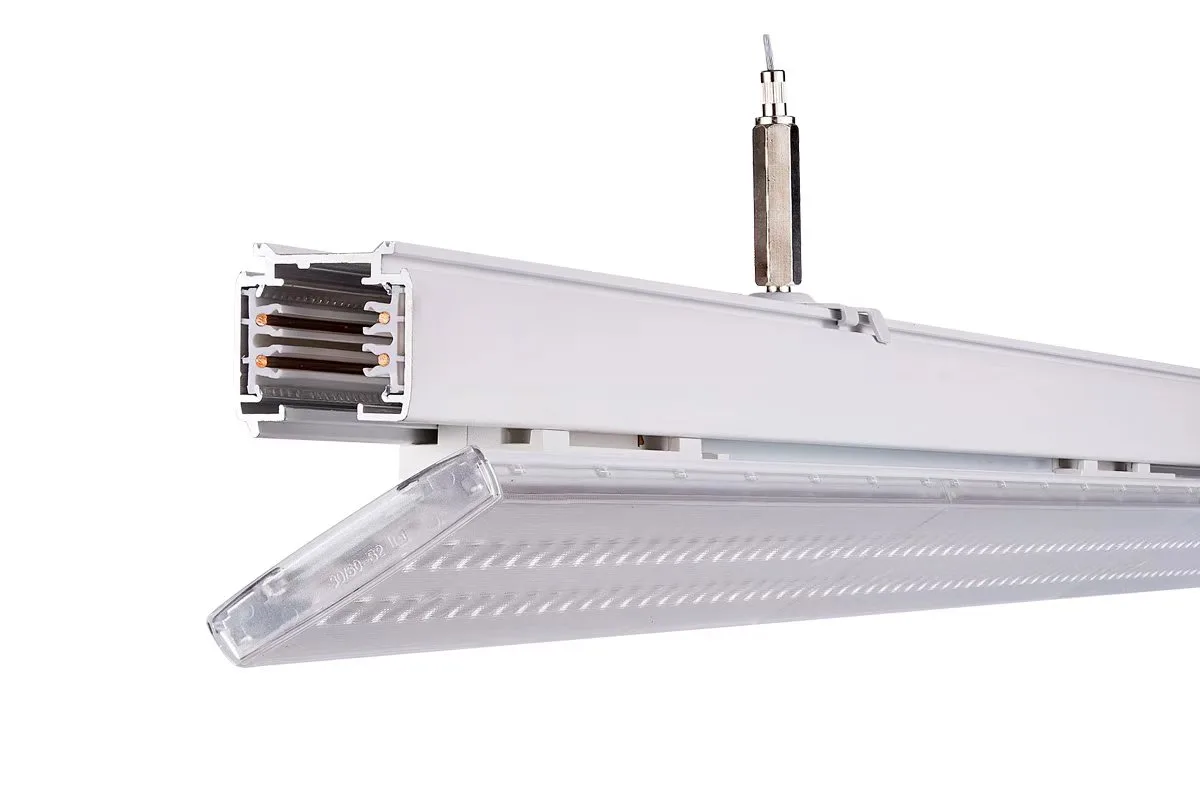

Standard Series
Multi-beam general lighting

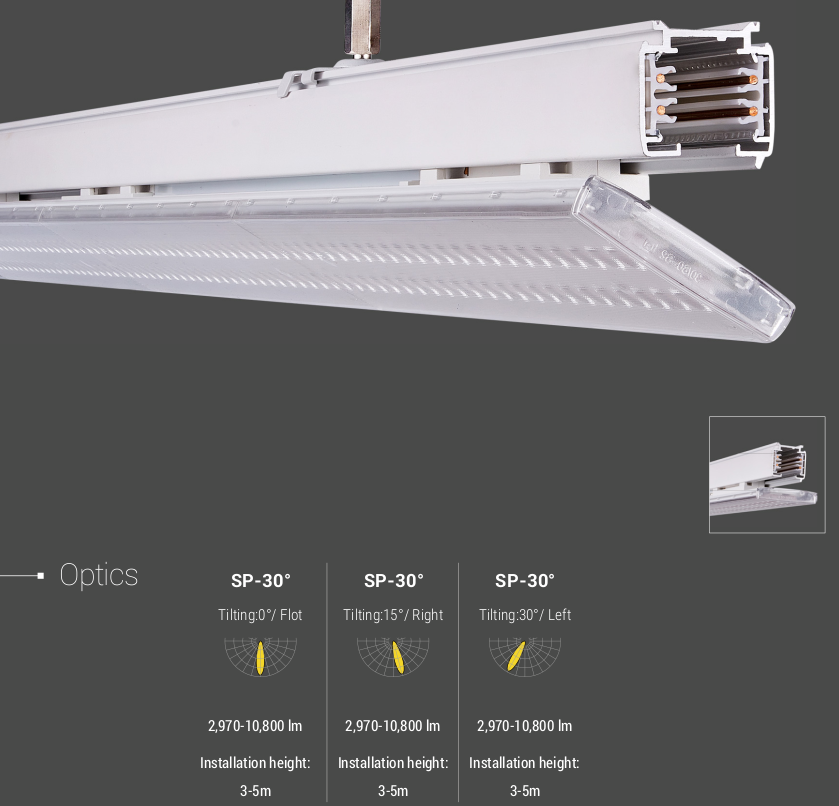

Single Tilting
Wall-wash & accent with tilt

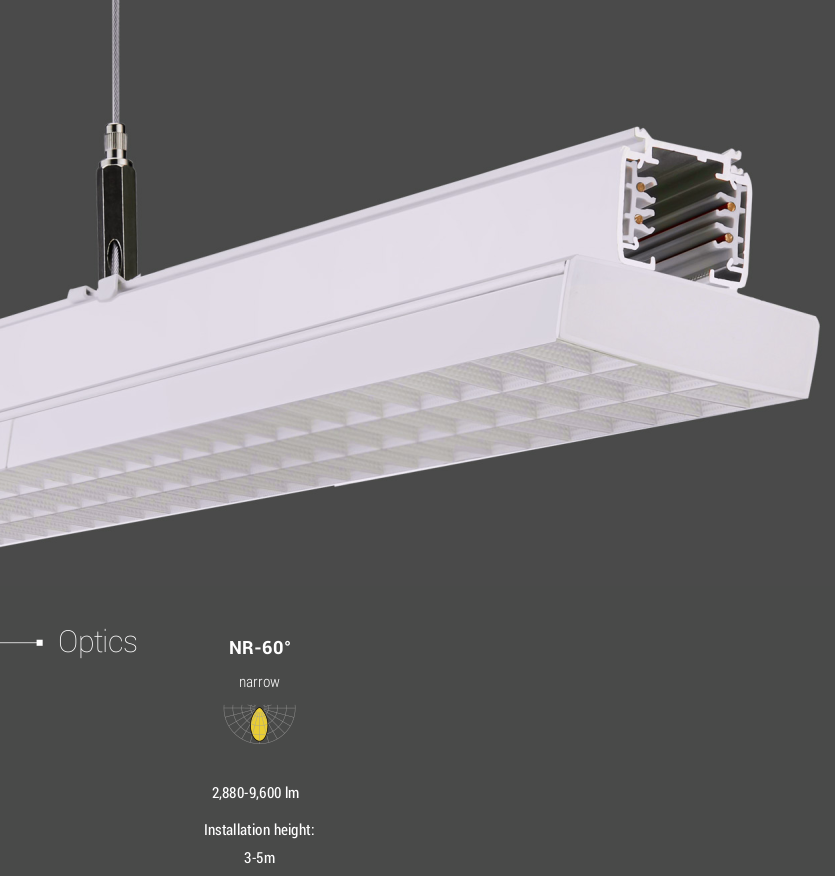

Grille (UGR<19)
UGR<19Anti-glare for offices & high-end retail

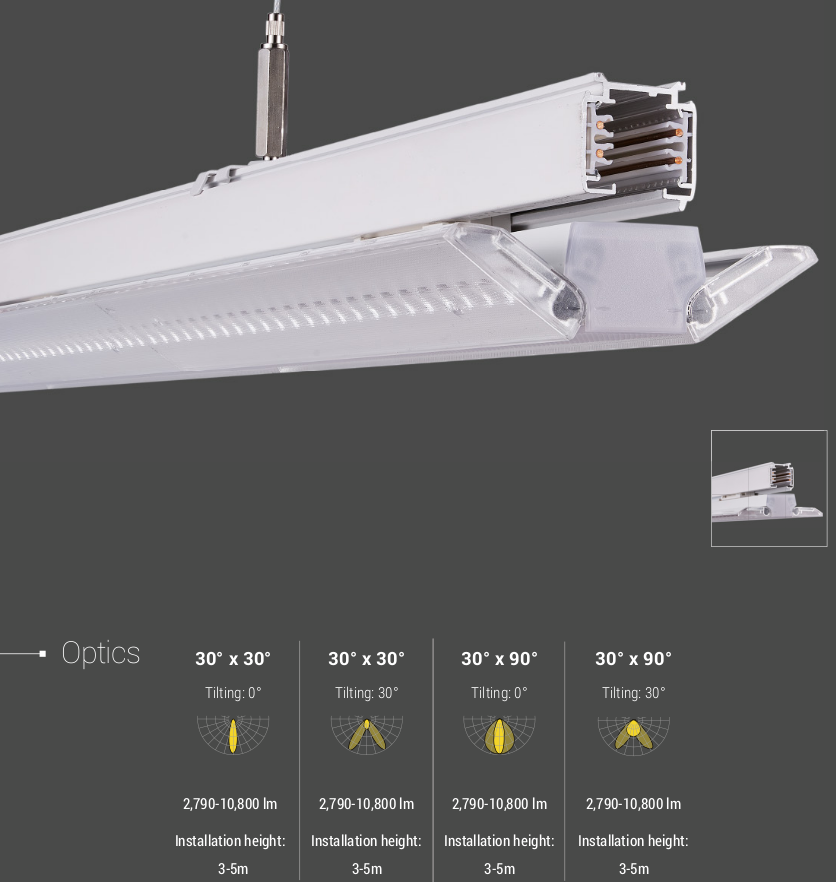

Batwing Central Panel
Asymmetric for shelves & vertical surfaces

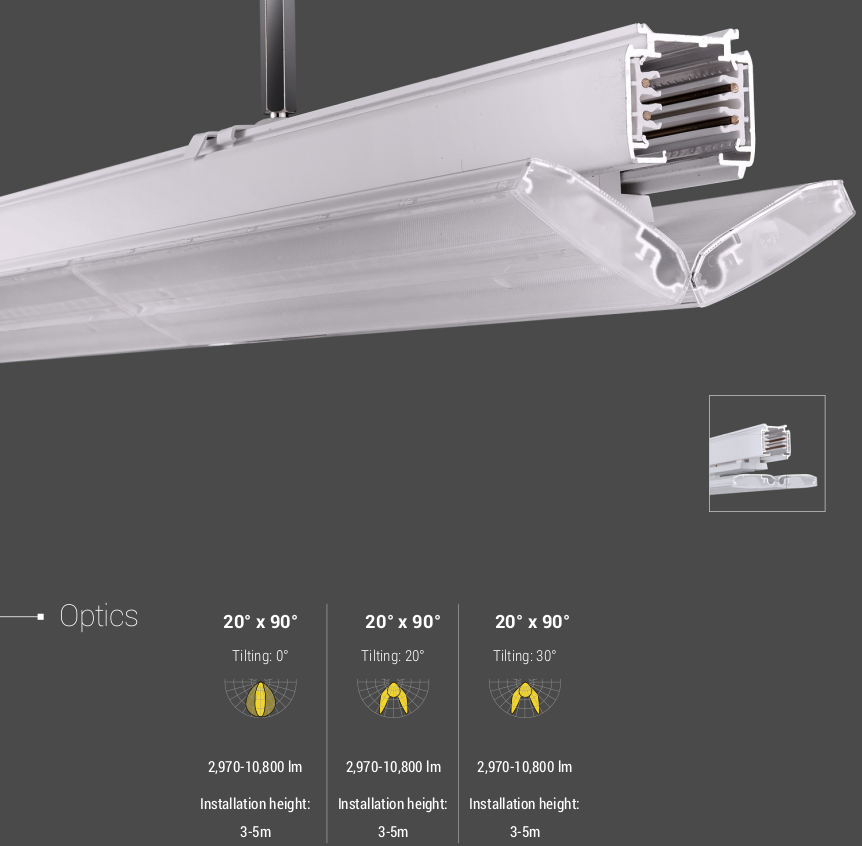

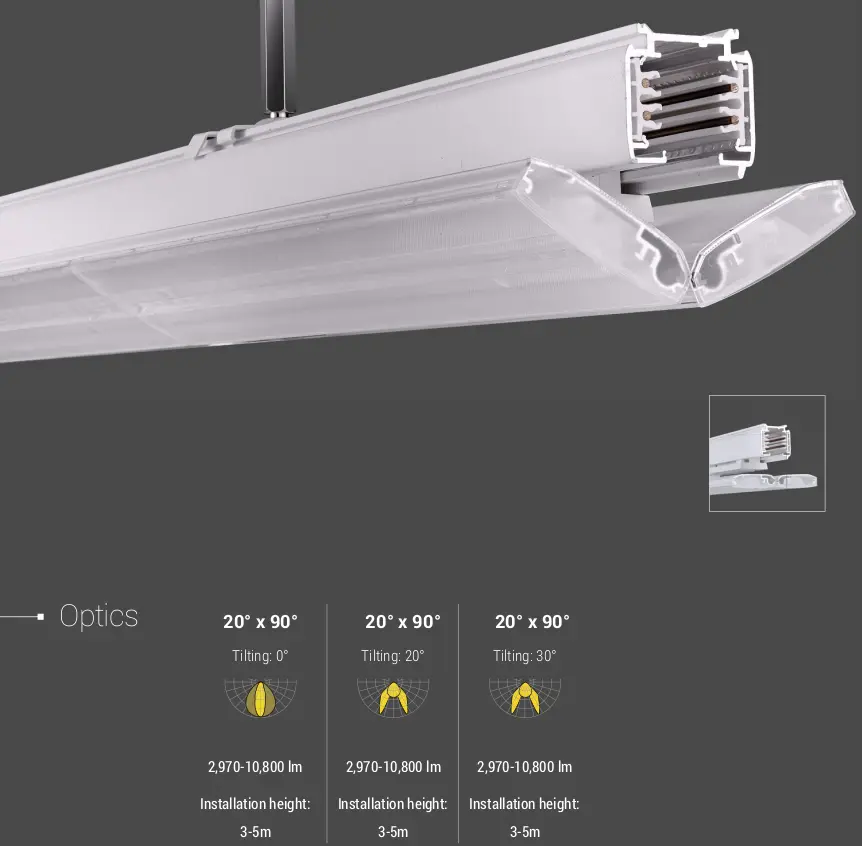

Batwing Tilting
Narrow asymmetric (20°x90°) with tilt
Beam Angle Options
Choose the perfect beam for your application
SP-30°
Extremely narrow, high intensity fo
Height: 3-5m
NR-60°
Narrow, balanced for retail aisles
Height: 3-5m
WD-90°
Wide, uniform for general areas
Height: 3-5m
DS
Double asymmetrical for wall-washin
Height: 2.5-5m
FD-120°
Extremely wide + milky diffuser
Height: 2.5-5m
20°x90°
Batwing asymmetric for shelf lighti
Height: 3-5m
Optimized for Supermarkets, Warehouses & Logistics — Replace Fluorescent Tubes
T-LINE delivers 180 lm/W efficacy — outperforming traditional fluorescent systems by over 60%. It directly replaces outdated linear fluorescent lighting in supermarkets, warehouses, and logistics centers while mounting on existing track rails without rewiring. Lower maintenance, higher output, instant energy savings.
- ✓ Supermarkets: High CRI >90Ra, combine with spotlights on same track
- ✓ Warehouses: SP-30° or NR-60° optics for high racks, DIP switch on-site adjustment
- ✓ Logistics: SVM ≤0.4 flicker-free, 100,000 hrs lifetime
• 60-80% energy reduction • 100,000 hrs vs 15,000 hrs • Mercury-free • Instant on • DALI dimming
T-LINE vs Traditional Fluorescent Track Lighting
| Parameter | Fluorescent | T-LINE LED |
|---|---|---|
| Efficacy | 60-80 lm/W | Up to 180 lm/W |
| Lifetime | 8,000-15,000 hrs | 100,000 hrs |
| CRI | 70-80 Ra | >80 / >90 Ra available |
| Flicker | Ballast-dependent | SVM ≤0.4 (flicker-free) |
| Mercury | Contains mercury | Mercury-free |
| Instant On | Warm-up delay | Full brightness instantly |
| Dimming | Complex ballast | DALI, 1-100% smooth |
Technical Specifications
| Input Voltage | 220-240VAC / 100-277VAC |
| Power (DIP switch) | 600mm: 18-24W / 1200mm: 35-50W / 1500mm: 45-60W |
| Lumen Output | 2,790 – 10,800 lm |
| Efficacy | White: up to 180 lm/W, Black: 155-165 lm/W |
| CCT | 2700K – 6500K (3000K/4000K/5000K/6000K) |
| CRI (Ra) | >80Ra or >90Ra | R9>0, SDCM<3 |
| Driver | on/off, DALI Coreshine | Dimming 1%–100% |
| Lifetime | 100,000 hrs |
| Flicker | SVM ≤0.4, Pst LM ≤1.0 |
| Protection | IP40 |
| Track Compatibility (Wiring) | ON/OFF: 4 wires 3 phases / DALI: 6 wires 3 phases |
| Warranty | 5 years |
Frequently Asked Questions
Can T-LINE directly replace existing fluorescent tubes on track rails?
What are the energy savings of replacing fluorescent tubes with T-LINE?
Is T-LINE compatible with Global / Ivela / Eutrac tracks?
Can I install track spotlights on the same rail with T-LINE linear lights?
What is the typical payback period for replacing fluorescent tubes with T-LINE?
Ready to Replace Fluorescent Tubes?
Get a quote for your supermarket, warehouse, or logistics project.
